LG GN5001RF PC ABS Material for Electronics & EVs
Estructura del producto

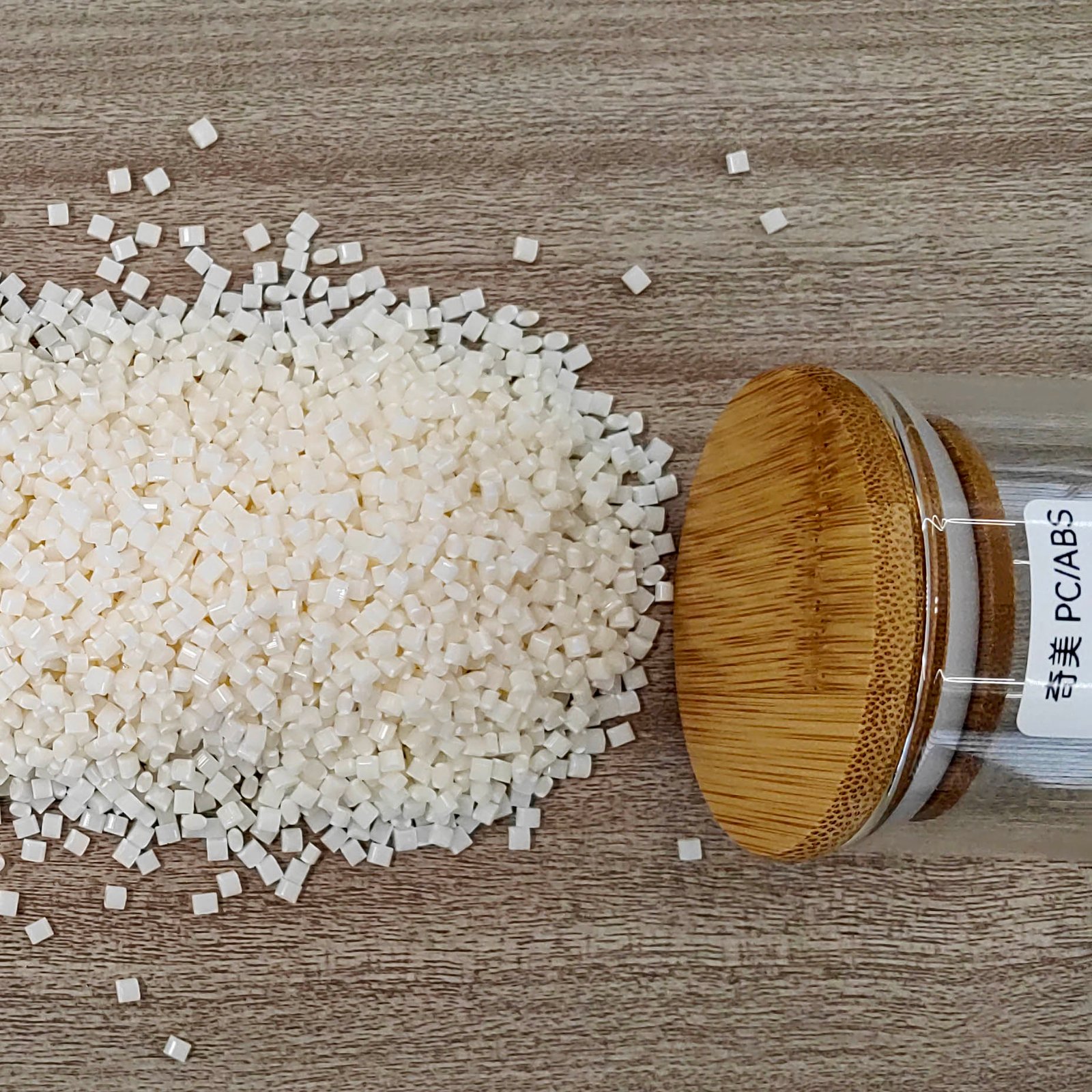

What is PC ABS Material - LG GN5001RF
Have you noticed that more and more consumer electronics, car interiors, and smart device shells feel more delicate, have thinner structures, and higher safety levels?
Behind this, the "invisible contribution" of PC ABS materials is being re-emphasized by the manufacturing industry. Especially the PC+ABS GN5001RF launched by LG is not a simple "plastic", but a structural and safety solution for high-standard fields.
01 | Not just flame retardant, what industry pain points is PC ABS solving?
Many companies face such confusion in the early stages of research and development:
・The shell must be beautiful, and the structure cannot be fragile
・The product wants to be lightweight, but the strength and dimensional stability must be guaranteed
・Overseas market regulations are becoming more and more stringent, and environmental protection and flame retardant certification of materials are indispensable
Although traditional ABS is easy to process and PC is strong, it is not "perfect" enough to use alone. The hybrid system of PC ABS has further balanced and optimized the advantages of the two materials.
LG's GN5001RF is a typical representative of this type of material:
✅ Halogen-free flame retardant, meets UL94 V-0, 5VA, 5VB standards, no pressure to exit
✅ High-flow particles, even if the mold structure is complex, it can take into account molding efficiency
✅ Mechanical strength, dimensional stability, impact resistance, comprehensive consideration
So it is widely used in:
・Internal structure of electric vehicles, electronic modules
・Smart home, communication equipment shell
・Various small electronic products, especially those that require a thin appearance while ensuring safety
02 | PC ABS Material Data Sheet
I know that just saying "good performance" is not very convincing, let's take a look at some technical indicators:
UL | Condición | Estándar | Valor | Unidad | |||
CTI | IEC 60112 | 2 | SOCIEDAD ANÓNIMA | ||||
Hola | Todos los colores 1,5 mm | UL 746A | 0 | SOCIEDAD ANÓNIMA | |||
Hola | All Color 2.0mm | UL 746A | 0 | SOCIEDAD ANÓNIMA | |||
Hola | All Color 2.5mm | UL 746A | 2 | SOCIEDAD ANÓNIMA | |||
Hola | Todos los colores 3,0 mm | UL 746A | 0 | SOCIEDAD ANÓNIMA | |||
Alta Velocidad | UL 746A | 3 | SOCIEDAD ANÓNIMA | ||||
HWI | Todos los colores 1,5 mm | UL 746A | 2 | SOCIEDAD ANÓNIMA | |||
HWI | All Color 2.0mm | UL 746A | 2 | SOCIEDAD ANÓNIMA | |||
HWI | All Color 2.5mm | UL 746A | 2 | SOCIEDAD ANÓNIMA | |||
HWI | Todos los colores 3,0 mm | UL 746A | 0 | SOCIEDAD ANÓNIMA | |||
RTI | Elec All Color 1.2mm | UL 746B | 60 | °C | |||
RTI | Elec Todos los colores 1,5 mm | UL 746B | 80 | °C | |||
RTI | Elec All Color 2.0mm | UL 746B | 80 | °C | |||
RTI | Elec All Color 2.5mm | UL 746B | 80 | °C | |||
RTI | Elec Todos los colores 3,0 mm | UL 746B | 80 | °C | |||
RTI | Imp All Color 1.2mm | UL 746B | 60 | °C | |||
RTI | Imp Todos los colores 1,5 mm | UL 746B | 80 | °C | |||
RTI | Imp All Color 2.0mm | UL 746B | 80 | °C | |||
RTI | Imp All Color 2.5mm | UL 746B | 80 | °C | |||
RTI | Imp todo color 3,0 mm | UL 746B | 80 | °C | |||
RTI | Str All Color 1.2mm | UL 746B | 60 | °C | |||
RTI | Str Todos los colores 1,5 mm | UL 746B | 85 | °C | |||
RTI | Str All Color 2.0mm | UL 746B | 85 | °C | |||
RTI | Str All Color 2.5mm | UL 746B | 85 | °C | |||
RTI | Cadena todo color 3,0 mm | UL 746B | 85 | °C | |||
Resistencia al arco | ASTM D495 | 6 | SOCIEDAD ANÓNIMA | ||||
Clasificación de llama | All Color 1.2mm | UL94 | V-0 | ||||
Clasificación de llama | Todos los colores 1,5 mm | UL94 | V-0 5VB | ||||
Clasificación de llama | All Color 2.0mm | UL94 | V-0 5VB | ||||
Clasificación de llama | All Color 2.5mm | UL94 | V-0 5VA | ||||
Clasificación de llama | Todos los colores 3,0 mm | UL94 | V-0 5VA | ||||
Comportamiento mecánico | Condición | Estándar | Valor | Unidad | |||
Alargamiento | Fractura 50 mm/min 3,2 mm | Norma ASTM D638 | 50 | % | |||
Resistencia a la flexión | 10mm/min 3.2mm | Norma ASTM D790 | 88.23 | MPa | |||
Módulo de flexión | 10mm/min 3.2mm | Norma ASTM D790 | 2450.98 | MPa | |||
Impacto de muesca Izod | 23 °C 3,2 mm | Norma ASTM D256 | 40 | kJ/m² | |||
Resistencia a la tracción | Rendimiento 50 mm/min 3,2 mm | Norma ASTM D638 | 58.82 | MPa | |||
Térmico | Condición | Estándar | Valor | Unidad | |||
HDT | Sin recocer 0,45 MPa 6,4 mm | Norma ASTM D648 | 92 | °C | |||
Propiedad fisica | Condición | Estándar | Valor | Unidad | |||
Contracción | Flujo 3,2 mm | Norma ASTM D955 | 0.4~0.6 | % | |||
Densidad | Norma ASTM D792 | 1.18 | gramos/cm³ | ||||
Índice de fusión | 250°C 2,16 kg | Norma ASTM D1238 | 16 | g/10min | |||
Dureza | Condición | Estándar | Valor | Unidad | |||
Dureza Rockwell | R(Escala) | Norma ASTM D785 | 113 | ||||
Inflamabilidad | Condición | Estándar | Valor | Unidad | |||
Clasificación de llama | All Color 1.2mm | UL94 | V-0 | ||||
Clasificación de llama | Todos los colores 1,5 mm | UL94 | V-0 5VB | ||||
Clasificación de llama | All Color 2.0mm | UL94 | V-0 5VB | ||||
Clasificación de llama | All Color 2.5mm | UL94 | V-0 5VA | ||||
Clasificación de llama | Todos los colores 3,0 mm | UL94 | V-0 5VA |
These parameters intuitively reflect that PC+ABS GN5001RF not only meets the basic strength requirements, but more importantly, it still maintains good performance in high temperature, complex structure, and thin-walled products.
03 | Under the industry trend, PC ABS has a stronger presence
If you pay attention to the following changes, you will find that PC ABS is no longer just an "option", but a "must-have" to meet challenges:
・Electric Vehicles (EVs) — Battery housings, interior trims, and smart modules demand lightweight yet flame-retardant, durable materials
・Consumer Electronics & Smart Devices — Thin, sleek designs meet increasing safety and environmental requirements
・Sustainability Regulations — Global brands shift to halogen-free, recyclable materials to comply with RoHS, REACH, and beyond
Under these trends, PC ABS solutions like GN5001RF not only improve product quality, but also help companies solve later compliance and risk issues in advance in the design stage
04 | Conclusion: Shape a safer and smarter future with PC ABS material
From new energy vehicles to smart terminals, from household appliances to industrial electronics, PC ABS materials have long become a dual guarantee for product innovation and safety. LG GN5001RF, with its high performance, environmentally friendly flame retardancy and excellent processability, is helping enterprises create lighter, stronger and more reliable product solutions.
👉 Contact us now for GN5001RF technical data, samples or more PC ABS material recommendations to help upgrade and innovate your products!
