Solvay's PSU P-3703 NT 11 vs PSU P-1710 NT 15



Polysulfone (PSU) is a class of engineering plastics that combines high-temperature resistance with structural stability. It is commonly used in electronic appliances, automotive parts, and food contact products. Solvay's PSU P-3703 NT 11 and PSU P-1710 NT 15 are both high-grade materials in this family, but they differ in processing adaptability, flame retardancy, and some performance indicators. This article provides an in-depth comparison and analysis of these two materials to provide a reference for purchasing decisions.

Nguồn P-3703 NT 11



01 | Commonalities



Material Basics

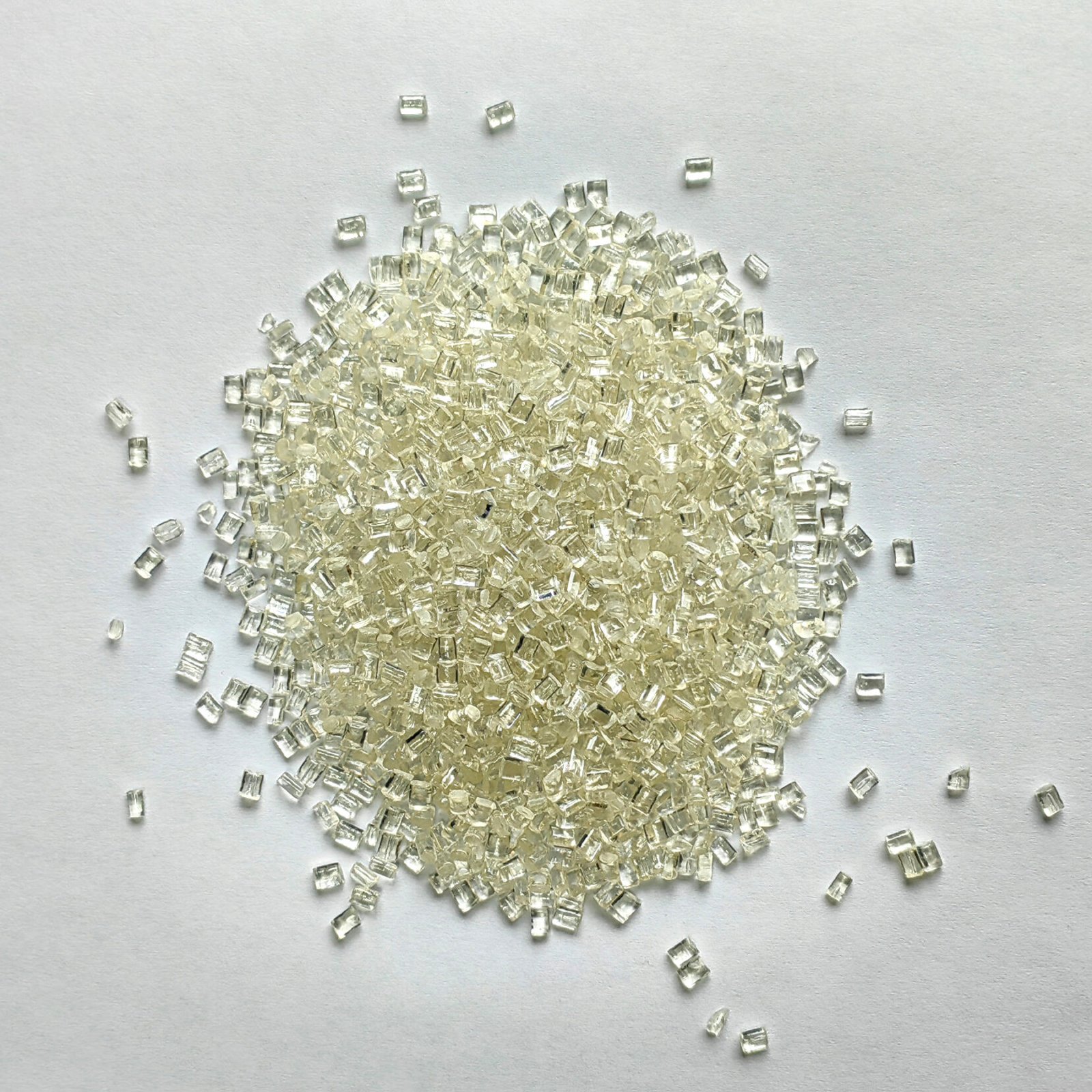

  ・Both are transparent granular PSU materials with excellent clarity, suitable for applications requiring a balance between appearance and performance.
  ・Both are compatible with injection molding and extrusion processes, offering strong processing adaptability.

Mechanical Properties

  ・Tensile strength is approximately 70 MPa, flexural strength is 106 MPa, and flexural modulus is close to 2690 MPa, demonstrating similarly stable strength and stiffness.
  ・Notched impact strength is 69 J/m, indicating similar toughness.

Thermal Performance

  ・With a heat deflection temperature (HDT) of 174°C, it maintains dimensional stability at high temperatures, making it suitable for electrical, appliance, and automotive electronics applications.

Electrical Properties

  ・Both have a dielectric strength of 17 kV/mm and a volume resistivity in the 10^16 Ω.cm range, offering excellent electrical insulation performance.
  ・The dielectric constant is stable at around 3.0, making it suitable for the electrical design requirements of electronic and electrical components.

Ứng dụng tiêu biểu

  ・Both are suitable for a wide range of applications, including household appliance components, electrical components, electronic and electrical applications, food service, industrial components, valves, cookware, and pipes.



02 | Comparison



Kích thước so sánhNguồn P-3703 NT 11PSU P-1710 NT 15Analysis of Differences
Flame Retardant RatingHB (1.5mm) ~ V-0 (4.5mm)V-2 (1.47mm, 3mm) ~ V-0 (6mm)P-1710 shows better flame-retardant performance at greater thicknesses, while P-3703 can more easily achieve V-0 at lower thickness.
Melt Flow Rate (MFR)17 g/10min (343℃, 2.16kg)6.5 g/10min (343℃, 2.16kg)P-3703 has higher flowability, suitable for complex thin-wall parts; P-1710 is more suitable for structural components.
Water Contact CertificationExplicitly certified for drinking water contactfood contactMeets NSF/ANSI/CAN 61, ISO 10993 certificationsP-1710 is better suited for medical and drinking water applications.
Glow-Wire TestNot specifiedGWIT/GWFI both above 850–960℃P-1710 has stronger advantages in electrical safety applications.
Hệ số tản nhiệt0.0011–0.0050.0007–0.006Both are close, but P-1710 performs slightly better at low frequencies.



03 | Advantages and Disadvantages



Nguồn P-3703 NT 11

Thuận lợi

  ・Higher flowability (MFR 17 g/10min), making it suitable for injection molding complex, thin-walled parts or detailed, precision components.
  ・Clearly marked as food contact and drinking water contact grade, it offers enhanced safety for use in kitchen appliances and drinking water systems.
  ・Flame retardant performance (HB) is achieved even at a thin thickness (1.5mm).

Disadvantages

  ・Glow-wire performance data is not provided, making it somewhat insufficient for certain applications requiring stringent electrical safety certifications.
  ・V-0 flame retardancy is only achieved on thicker products (>4.5mm).



PSU P-1710 NT 15

Thuận lợi

  ・Excellent glow-wire performance (850–960°C), making it suitable for safety-critical applications such as electrical components and appliance enclosures.
  ・Achieving UL94 V-0 at a thicker thickness (6mm) provides more stable electrical flame retardancy.
  ・Certifications include ISO 10993, NSF, and RoHS, extending its scope to medical and water-contact grades.

Disadvantages

  ・Lower flowability (MFR 6.5 g/10min) makes it less convenient than P-3703 for processing complex molds or thin-walled products.
  ・Appearance transparency and clarity are not particularly emphasized in applications.



04 | Application Recommendations



PSU P-3703 NT 11: Suitable for drinking water system components, kitchen appliances, food contact utensils, and thin-walled, complex injection molded parts, especially in home appliances and consumer electronics.

PSU P-1710 NT 15: Recommended for electrical components, automotive electronics, battery modules, and medical and industrial equipment components, particularly those requiring higher flame retardancy and electrical safety.



05 | Selection Recommendations



  ・If the purchaser prioritizes process fluidity and food and drinking water safety certifications, then the P-3703 NT 11 is preferred.

  ・If the purchaser prioritizes flame retardancy, electrical safety, and medical certifications, then the P-1710 NT 15 is preferred.



06 | Similar Recommendations



In addition to the P-3703 NT 11 and P-1710 NT 15, Juyaun also offers a variety of PSU series materials:

nhà chế tạoMô hình sản phẩmTrọng lượng riêngMelt Flow IndexĐộ bền kéoĐộ giãn dàico ngótMô đun kéoHDTNotched Izod ImpactMô đun uốnCoefficient of Linear ExpansionĐộ bền uốn
SolvayP-1800 NT 111.24 g/cm³6.5 g/10min70.3 MPa75%0.70%2480 MPa174 ℃69 J/m2690 MPa5.6E-3 cm/cm/℃106 MPa
SolvayP-3500 NT 111.24 g/cm³70.3 MPa50~100 %2480 MPa174 ℃69 J/m2690 MPa5.6E-5 cm/cm/℃106 MPa
SolvayP-35001.24 g/cm³4 g/10min70.3 MPa75%0.70%2480 MPa174 ℃69 J/m2690 MPa106 MPa
SolvayP-3500 LCD MB31.24 g/cm³70.3 MPa50~100 %2480 MPa174 ℃7.04 kJ/m²2690 MPa5.6E-5 cm/cm/℃106 MPa
SolvayP-17201.24 g/cm³7 g/10min70.3 MPa75%0.70%2480 MPa174 ℃69 J/m2690 MPa5.6E-3 cm/cm/℃106 MPa
SolvayP-3500 LCD MB71.24 g/cm³70.3 MPa50~100 %2480 MPa174 ℃7.04 kJ/m²2690 MPa5.6E-5 cm/cm/℃106 MPa
SolvayP-3500 LCD MB81.24 g/cm³70.3 MPa75%2480 MPa174 ℃69 J/m2690 MPa106 MPa
SolvayP-3700 HC1.24 g/cm³18 g/10min75.8 MPa45%0.70%2690 MPa178 ℃53 J/m2760 MPa117 MPa
SolvayP-1750 MR1.24 g/cm³6.5 g/10min70.3 MPa75%0.70%2480 MPa174 ℃69 J/m2690 MPa106 MPa

PSU P-1710 NT 15



07 | Juyuan's Supply Advantages



As an international plastic raw material trader, Juyuan provides a stable supply of PSU, enabling global buyers to quickly find suitable solutions for food-grade, medical-grade, and electrical-grade applications. We not only guarantee the stable delivery of raw materials, but also provide customers with material selection support, alternative solution recommendations and international trade supporting services.
