TECACOMP® PEEK 150 CF30 Black 3154 PEEK Material

TECACOMP® PEEK 150 CF30 black 3154 is a carbon fiber reinforced peek material developed by Ensinger, specifically designed for engineering fields with strict requirements for high mechanical strength and thermal stability. The material is made of 30% carbon fiber composite, which takes into account lightweight, dimensional stability and electrical conductivity, making it exhibit an excellent performance balance in automotive, mechanical equipment and precision engineering applications.

1. Analysis of Technical Characteristics

Compared with ordinary PEEK resin, TECACOMP® PEEK 150 CF30 black 3154 significantly enhances rigidity and tensile strength through carbon fiber reinforcement, while maintaining good heat resistance and wear resistance. This formula enables the material to maintain structural stability without significant deformation under high-temperature loads.

  ・High strength and high modulus: Carbon fiber reinforced structures can withstand greater stress loads and are suitable for replacing some metal structural components.

  ・Low shrinkage and high dimensional accuracy: After injection molding, the components have an extremely low deformation rate, ensuring assembly stability.

  ・Excellent thermal stability: Long-term temperature resistance up to 260°C, short-term temperature resistance up to 300°C, suitable for components exposed to high-temperature environments for a long time.

  ・Adjustable surface conductivity: The material exhibits a certain degree of conductivity, making it suitable for applications requiring static control.

2. Process Compatibility and Processing Suggestions

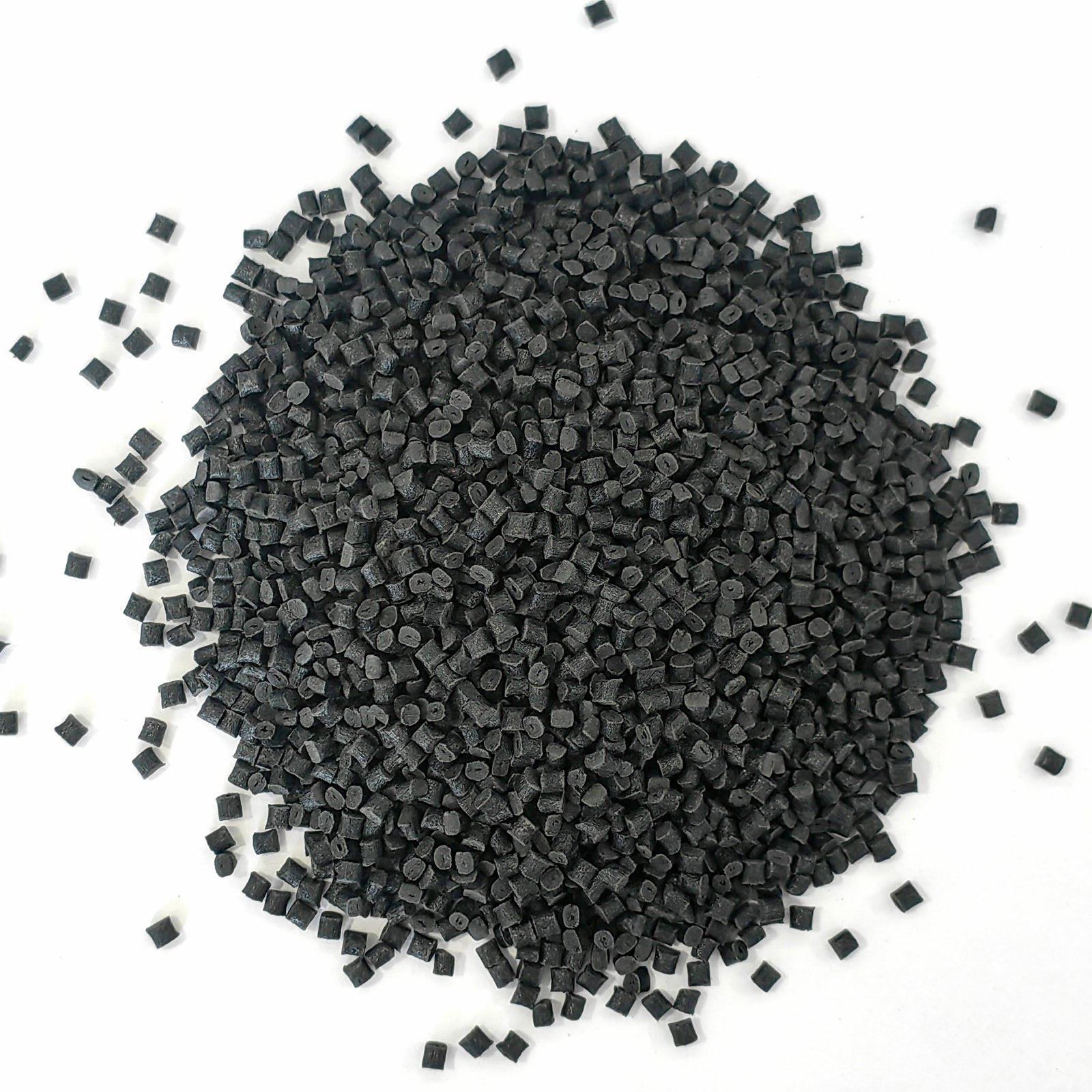

TECACOMP® PEEK 150 CF30 black 3154 is supplied in granular form and is suitable for standard injection molding or extrusion molding processes. Due to the high rigidity of the carbon fiber reinforced system, it is recommended that the mold be made of wear-resistant steel and the gate design be optimized to reduce the internal stress caused by uneven fiber orientation.

In terms of processing temperature, it is recommended that the melting temperature be controlled at around 370°C and the mold temperature be maintained at 160-180°C, which can achieve the best surface quality and mechanical properties.

3. Industry Application Fields

This peek material is widely used in fields with extremely high requirements for structural stability and wear resistance:

  ・Automotive industry: It is used for high-temperature and high-load components such as transmission parts, friction rings, and clutch brackets to enhance overall reliability.

  ・Mechanical engineering: Suitable for components such as bearing housings, gears, and sliders that require wear resistance and high rigidity.

  ・Commercial equipment and precision engineering: Providing stable dimensions and low wear characteristics in printing equipment, testing devices, and medical analysis instruments.

  ・Electronic and electrical systems: The conductivity brought by carbon fiber reinforcement makes it suitable for use as anti-static structural components.

4. TECACOMP® PEEK 150 CF30 black 3154 Data Sheet

5. Performance Advantages and Innovative Significance

The core advantage of TECACOMP® PEEK 150 CF30 black 3154 lies in the balance of "strength, stability and lightweight". Carbon fiber forms a stable skeleton structure in the PEEK matrix, making the material less prone to deformation or fatigue cracking under force.

Meanwhile, the thermal conductivity of carbon fibers ensures a more uniform heat distribution, making the dimensions of components more stable in high-temperature environments.
Compared with glass fiber reinforced PEEK, this material is lighter and harder, and is particularly suitable for structural components that require rigid support, dimensional accuracy and wear resistance.

It enables designers to achieve reliable and long-lasting mechanical properties without relying on metals.

6. Similar Recommendations

If your project has different requirements for strength, friction coefficient or processing characteristics, Juyuan can also provide the following series of materials for comparison and testing:

7. FAQ

Q1: Is carbon fiber-reinforced peek material more difficult to process than glass fiber-reinforced one?

A: The fluidity of carbon fiber reinforced PEEK is slightly lower, but stable injection molding can be achieved by appropriately increasing the melting temperature and optimizing the gate design.

Q2: Can this material be used in food-grade or medical devices?

A: TECACOMP® PEEK 150 CF30 black 3154 is not specifically designed for food or medical contact. If you need relevant certification, please choose Enxingge's dedicated medical or food-grade series.

Q3: Can Juyuan offer technical comparisons or suggestions for alternative models?

A: Yes, we can recommend the appropriate peek material grade and production plan based on application conditions (such as temperature, load, and wear resistance requirements).

8. Why Choose PEEK Materials supplied by Juyuan?

As a long-term supplier engaged in the international trade of engineering plastics, Juyuan is well-versed in the material selection requirements of different industrial fields. We offer our customers

  ・Genuine peek material from authorized channels of the original factory;

  ・Complete technical data support and molding suggestions;

  ・Global logistics services and bulk customized packaging;

  ・Our professional team offers selection consultation and alternative recommendations.

For manufacturers who pursue structural reliability, long service life and thermal stability, TECACOMP® PEEK 150 CF30 is an ideal choice that combines engineering performance with commercial value.
