What is PBT Plastic Material - 2002-2

As the plastics industry continues to evolve towards high performance and versatility, polybutylene terephthalate (PBT plastic material) has gained wide application in the electrical and electronic, automotive and industrial sectors due to its excellent overall performance. PBT 2002-2 from Celanese is a typical general-purpose pellet material with non-reinforced, internally lubricated properties to meet diversified injection moulding needs.

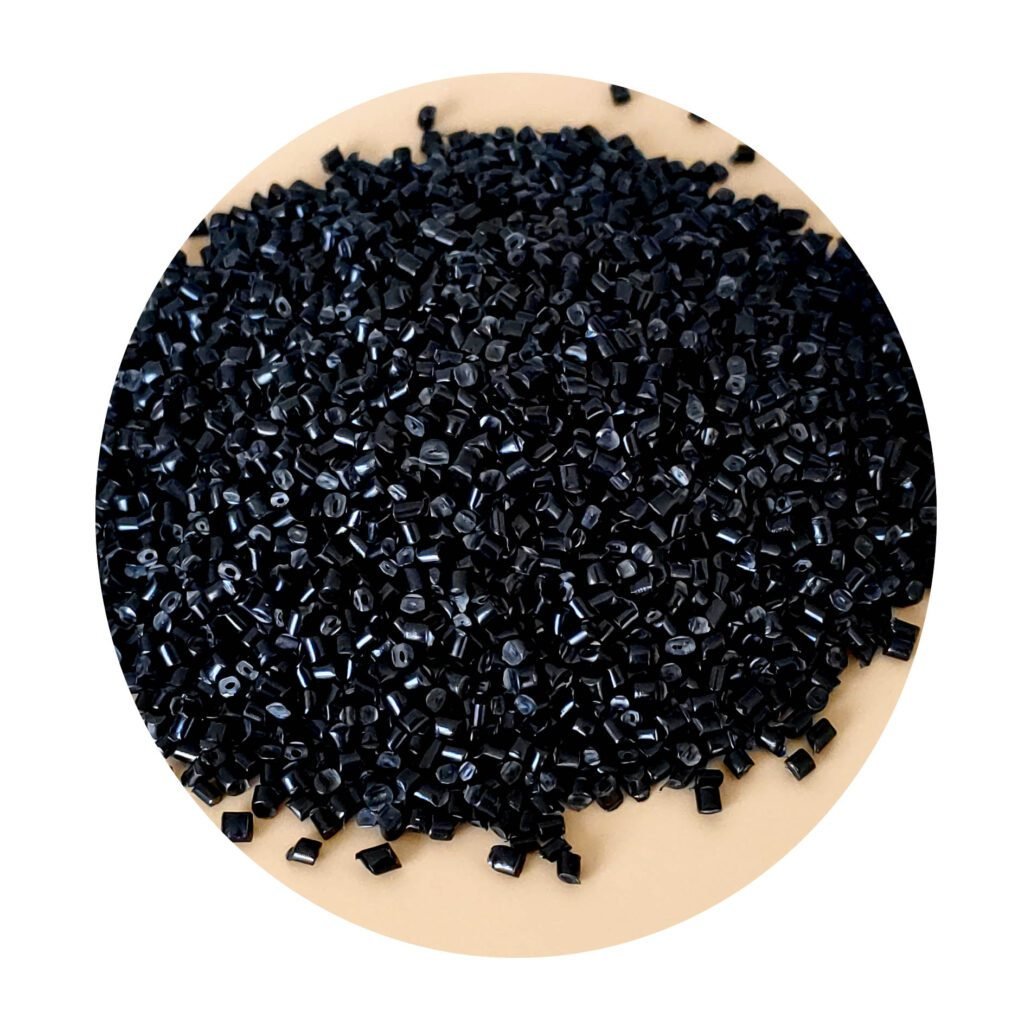

PBT 2002-2 adopts a granular form and supports the injection molding process. The flame retardant grade of the material is HB. It is equipped with lubricants and mold release agents, which makes the product molding process more stable and ensures a high surface finish. It has medium fluidity and is suitable for injection molded parts with various complex structures, especially for application scenarios that require internal lubrication and balanced processing performance.

PBT 2002-2

01 | Analysis of The Core Performance of PBT Plastic Material

Balance liquidity and processability

Celanese PBT 2002-2 has a good flow balance, taking into account the performance requirements of both the filling and holding pressure stages, ensuring a stable injection molding cycle and accurate finished product dimensions.

Excellent Electrical Insulation

The material has an electrical strength of 30KV/mm and a volume resistance of 1×10^15 Ω.cm, making it suitable for parts with stringent insulation requirements in electronics and electrical appliances.

Stable and reliable thermal performance

Its heat distortion temperature is around 150℃ (0.45MPa load), and its Vicat softening temperature reaches 190℃, which ensures worry-free long-term use under moderate thermal load environment.

The mechanical properties are moderate and meet general requirements

The elongation at break reaches 50%, the tensile strength is 60MPa, demonstrating certain toughness and good strength balance, and is suitable for various general structural components.

Structurally stable, meets basic flame retardant needs

PBT 2002-2 has low shrinkage and good dimensional stability, suitable for precision injection moulding; HB-rated flame retardancy, suitable for general electronics and structural component applications.

02 | PBT Plastic Material Typical Application Scenarios

Electronic and electrical components

Suitable for relay housings, power plugs, etc. Internal lubrication characteristics reduce friction and extend service life.

Automotive interior and non-structural parts

Suitable for the manufacture of interior parts requiring a certain degree of rigidity and aesthetics, flame retardant performance to meet the basic safety standards.

General industrial parts

Such as connector blocks, shells, etc., to meet the physical and electrical requirements of daily industrial applications.

03 | Comparative Advantages with Other PBT Plastic Materials

Compared with reinforced PBT, PBT 2002-2 does not contain glass fibre, but has better surface finish and flow properties due to its internal lubrication and no filler characteristics. It is suitable for precision moulds and applications with high surface requirements. In addition, its low water absorption and stable electrical properties have irreplaceable advantages in the manufacture of certain electronic components.

04 | PBT 2002-2 Plastic Material Technical Data Sheet

UL	Condición	Estándar	Valor	Unidad
CTI		IEC 60112	0	SOCIEDAD ANÓNIMA
Hola	All Color 0.71mm	UL 746A	0	SOCIEDAD ANÓNIMA
Hola	Todos los colores 1,5 mm	UL 746A	0	SOCIEDAD ANÓNIMA
Hola	Todos los colores 3,0 mm	UL 746A	0	SOCIEDAD ANÓNIMA
Alta Velocidad		UL 746A	1	SOCIEDAD ANÓNIMA
HWI	All Color 0.71mm	UL 746A	4	SOCIEDAD ANÓNIMA
HWI	Todos los colores 1,5 mm	UL 746A	3	SOCIEDAD ANÓNIMA
HWI	Todos los colores 3,0 mm	UL 746A	3	SOCIEDAD ANÓNIMA
RTI	Elec All Color 0.71mm	UL 746B	130	°C
RTI	Elec Todos los colores 1,5 mm	UL 746B	130	°C
RTI	Elec Todos los colores 3,0 mm	UL 746B	130	°C
RTI	Imp Todos los colores 1,5 mm	UL 746B	120	°C
RTI	Imp todo color 3,0 mm	UL 746B	120	°C
RTI	Str All Color 0.71mm	UL 746B	130	°C
RTI	Str Todos los colores 1,5 mm	UL 746B	130	°C
RTI	Cadena todo color 3,0 mm	UL 746B	130	°C
Resistividad volumétrica		Norma ASTM D257	1E14	Ω.cm
Dimensional Stability		UL746	0.0	%
Rigidez dieléctrica		Norma ASTM D149	30	kilovoltios/mm
Resistencia al arco		ASTM D495	5	SOCIEDAD ANÓNIMA
Clasificación de llama	All Color 0.71mm	UL94	media pensión
Clasificación de llama	Todos los colores 1,5 mm	UL94	media pensión
Clasificación de llama	Todos los colores 3,0 mm	UL94	media pensión
Comportamiento mecánico	Condición	Estándar	Valor	Unidad
Alargamiento	Rendimiento 50 mm/min	ISO 527	4	%
Alargamiento	Rotura 50 mm/min	ISO 527	50	%
Resistencia a la flexión	23ºC	ISO 178	80	MPa
Módulo de flexión	23ºC	ISO 178	2500	MPa
Impacto de muesca Izod	23ºC	ISO 180	5	kJ/m²
Resistencia a la tracción	50% strain 50mm/min	ISO 527	30	MPa
Resistencia a la tracción	Rotura 50 mm/min	ISO 527	60	MPa
Resistencia a la tracción	Rendimiento 50 mm/min	ISO 527	60	MPa
Módulo de tracción		ISO 527	2600	MPa
Impacto Charpy sin muesca	23ºC	ISO 179	NÓTESE BIEN	kJ/m²
Impacto Charpy sin muesca	-30°C	ISO 179	190	kJ/m²
Impacto con entalla Charpy	23ºC	ISO 179	6	kJ/m²
Impacto con entalla Charpy	-30°C	ISO 179	6	kJ/m²
Térmico	Condición	Estándar	Valor	Unidad
HDT	0,45MPa	ISO 75	150	°C
HDT	1,8MPa	ISO 75	55	°C
Temperatura de fusión	10 °C/min	ISO 11357	225	°C
Temperatura de transición vítrea	10 °C/min	ISO 11357	60	°C
CLE	Fluir	ISO 11359	1.1E-4	cm/cm/°C
CLE	xFlujo	ISO 11359	1.27E-4	cm/cm/°C
Temperatura de ablandamiento Vicat	50 °C/h 50 N	ISO 306	190	°C
Propiedad fisica	Condición	Estándar	Valor	Unidad
Absorción de agua	23°C Saturation	ISO 62	0.45	%
Absorción de humedad	23 °C 50HR	ISO 62	0.2	%
Contracción	Fluir	ISO 294	1.8~2	%
Densidad		ISO 1183	1.31	gramos/cm³
Índice de fusión	250°C 2.16kg	ISO 1133	20	cm³/10min
Propiedades electricas	Condición	Estándar	Valor	Unidad
CTI		IEC 60112	600	V
Constante dieléctrica	1 MHz	IEC 60250	3.5
Constante dieléctrica	100 Hz	IEC 60250	4
Resistividad volumétrica		CEI 60093	1E+15	Ω.cm
Rigidez dieléctrica		CEI 60243	23	kilovoltios/mm
Factor de disipación	1 MHz	IEC 60250	0.022
Factor de disipación	100 Hz	IEC 60250	0.0014
Resistividad superficial		CEI 60093	1E15	Ω
Dureza	Condición	Estándar	Valor	Unidad
Dureza Rockwell	M(Escala)	ISO 2039	78
Inflamabilidad	Condición	Estándar	Valor	Unidad
Oxygen Limiting Index		ISO 4589	22	%
Clasificación de llama	All Color 0.71mm	UL94	media pensión
Clasificación de llama	Todos los colores 1,5 mm	UL94	media pensión
Clasificación de llama	Todos los colores 3,0 mm	UL94	media pensión

05 | Future Development Trends and Technological Outlook

With the advancement of intelligent manufacturing and green environmental protection concepts, PBT material plásticos are evolving towards low-VOC, environmentally friendly resins and intelligent composite materials. The stability and processability of Celanese PBT 2002-2 provide a solid foundation for its subsequent upgrades. In the future, the addition of more functional additives and sustainable formulations is expected to further expand the application fields of PBT.

06 | Conclusion

Choosing Celanese PBT 2002-2 means choosing a general-purpose PBT plastic material with balanced performance, friendly process and wide application. Whether you are an electronic and electrical appliance manufacturer or an industrial parts supplier, this material can bring stable quality and reliable performance guarantee to your products.

For more detailed technical parameters (TDS) of the products or free samples, please feel free to contact our technical support team.
