Udel® P-1700 NT 11 | Medical & Food Contact Grade PSU
Productconstructie
What is Udel® P-1700 NT 11

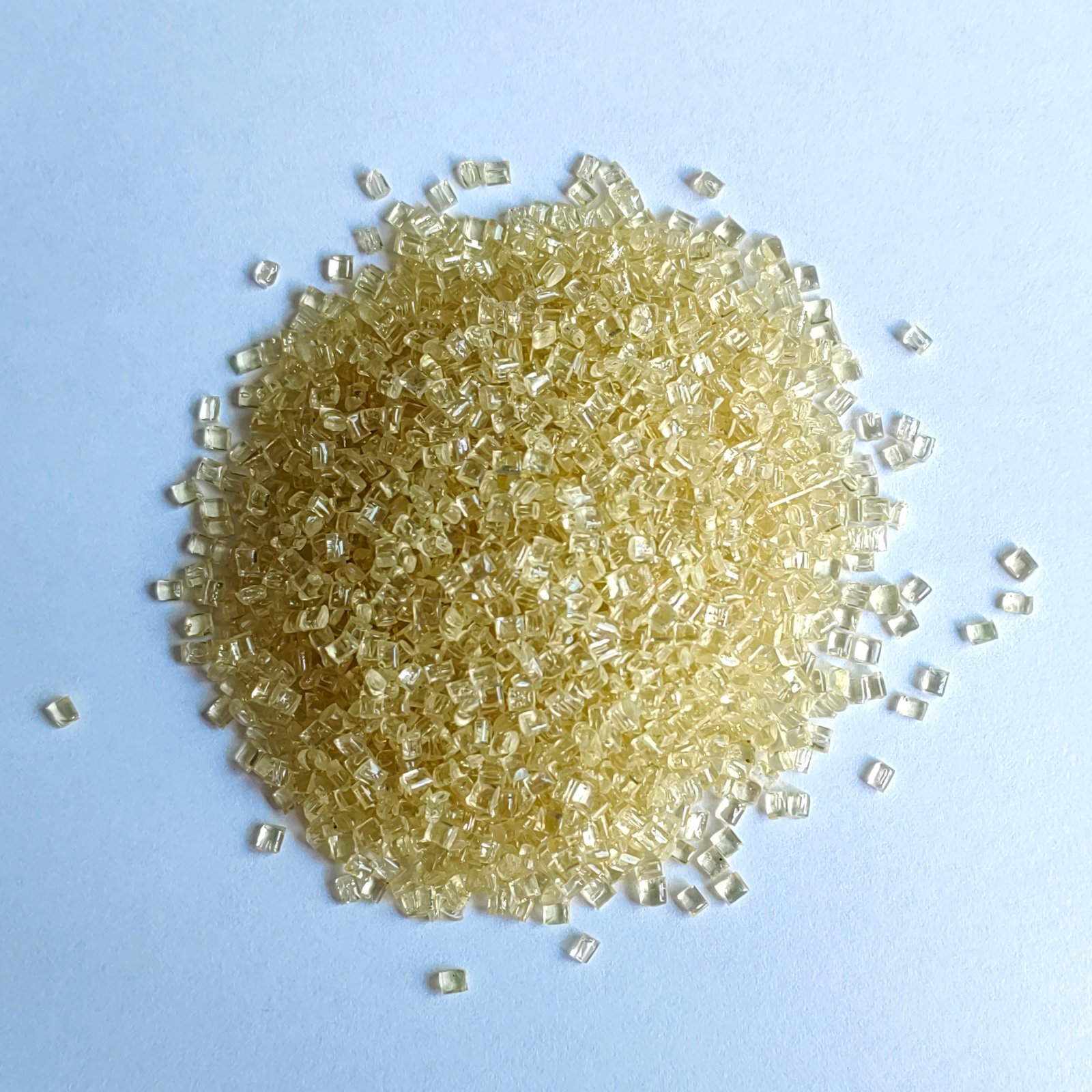

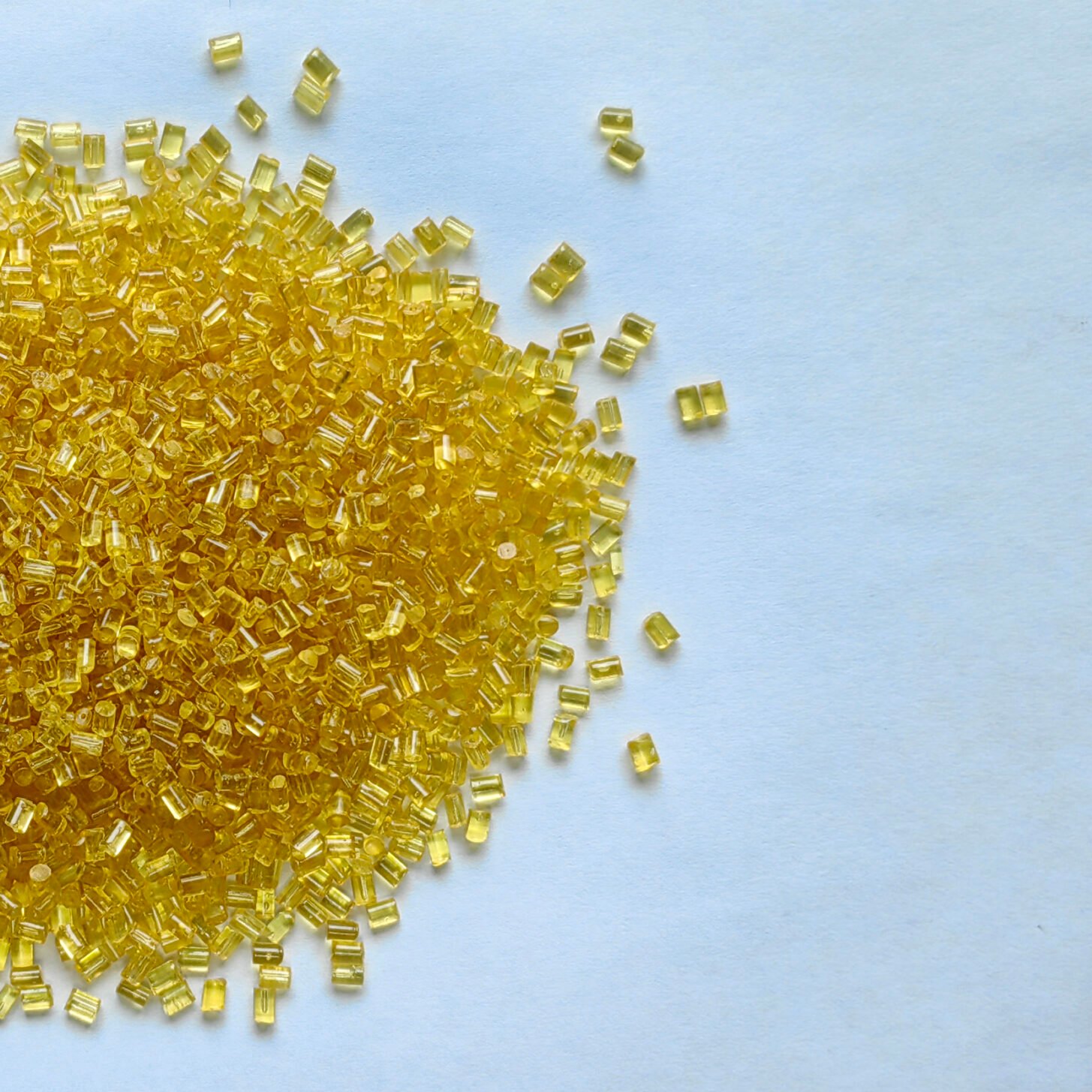

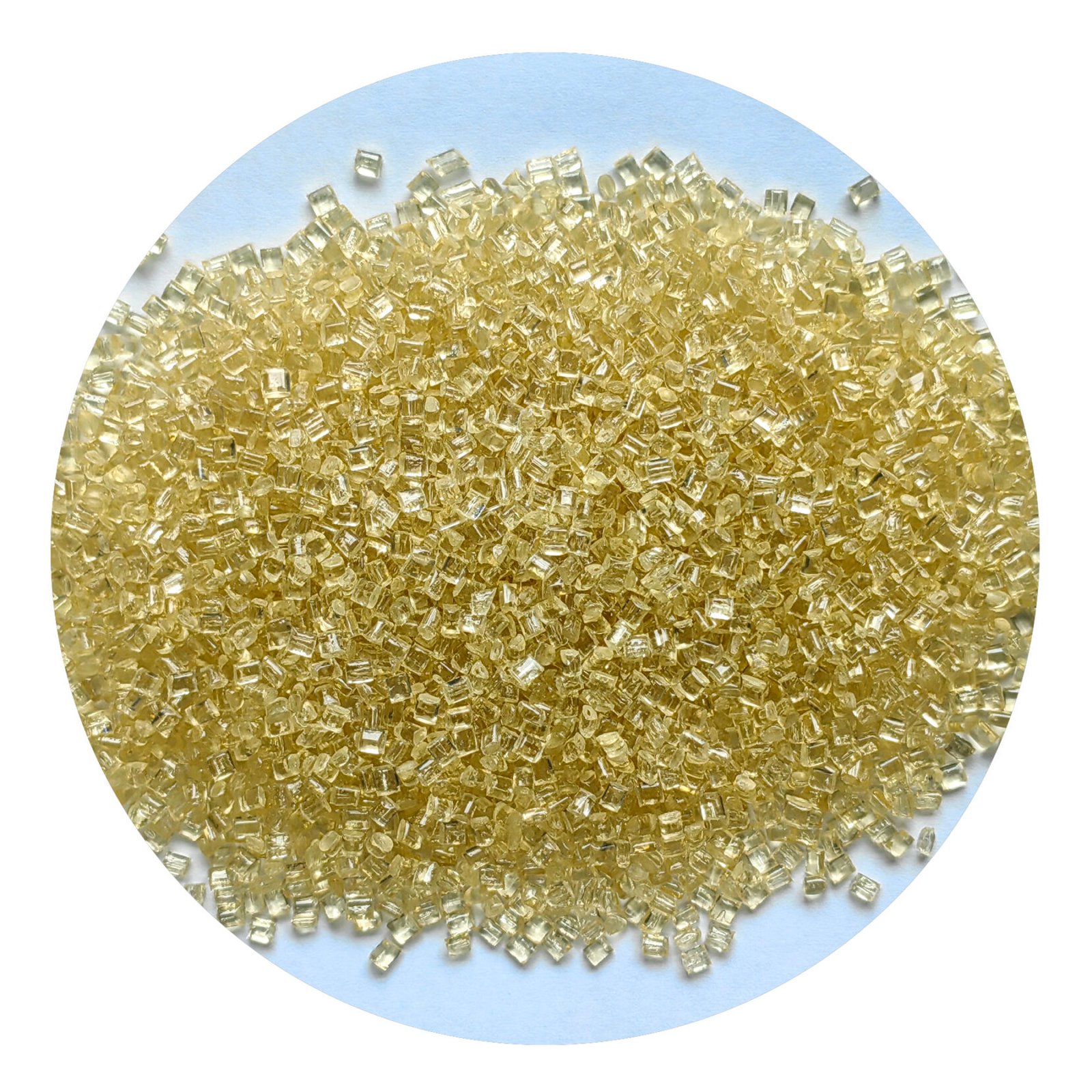

Udel® P-1700 NT 11 is a transparent polysulfone (PSU) resin from Solvay. It combines heat resistance, chemical stability, and electrical insulation, making it suitable for medical and food-contact applications. With balanced toughness and process flexibility, it is widely used in sectors requiring safety and reliability.
01 | Material Properties
Chemische bestendigheid: Stable against acids, alkalis, alcohols, and common chemicals.
Sterilization tolerance: Can handle steam, ethylene oxide, electron beam, and gamma-ray sterilization without degradation.
Biocompatibiliteit: Meets standards for medical devices and hygiene products.
Dimensional stability: Maintains shape and accuracy under high temperature or mechanical load.
Verschijning: Semi-transparent with smooth surface, suitable for visible parts or devices requiring light transmission.
High-temperature durability: Keeps mechanical strength and toughness in hot or hydrocarbon environments.
Cleaning resistance: Compatible with repeated cleaning and disinfection.
Mechanical balance: Combines toughness and structural strength for reliable performance.
02 | Typical Applications
Huishoudelijke apparaten: Microwave oven components, cookware, and heat-resistant parts.
Electronics: Electrical components needing insulation and dimensional precision.
Automotive electronics: Control modules and functional parts in vehicles.
Medical devices: Dental tools, surgical instruments, and nursing consumables.
Food contact: Containers, valves, and pipes that comply with drinking water standards.
Industrial components: Parts exposed to chemicals or high temperature.
Piping systems: Drinking water pipelines and valve assemblies.
03 | Processing Adaptability
Methods: Injection molding, extrusion, blow molding, thermoforming, CNC machining.
Flame retardancy: Grades from HB to V-0 for various safety requirements.
Multi-form use: Suitable for films, plates, and profiles without compromising performance.
04 | Udel® P-1700 NT 11 Data Sheet
UL | Voorwaarde | Standaard | Waarde | Eenheid | |||
CTI | EN 60112 | 4 | BV | ||||
GWFI | 0,8 mm | EN 60695-2-12 | 850 | °C | |||
GWFI | 1,5 mm | EN 60695-2-12 | 960 | °C | |||
GWFI | 3,0 mm | EN 60695-2-12 | 960 | °C | |||
GWFI | 6,0 mm | EN 60695-2-12 | 960 | °C | |||
GWIT | 0,8 mm | EN 60695-2-13 | 875 | °C | |||
GWIT | 1,5 mm | EN 60695-2-13 | 850 | °C | |||
GWIT | 3,0 mm | EN 60695-2-13 | 850 | °C | |||
GWIT | 6,0 mm | EN 60695-2-13 | 850 | °C | |||
HAI | Alle kleuren 1,5 mm | UL746A | 4 | BV | |||
HAI | Alle kleuren 3,0 mm | UL746A | 4 | BV | |||
HVTR | UL746A | 4 | BV | ||||
HWI | Alle kleuren 1,5 mm | UL746A | 3 | BV | |||
HWI | Alle kleuren 3,0 mm | UL746A | 3 | BV | |||
RTI | Elec Alle Kleuren 1.5mm | UL 746B | 160 | °C | |||
RTI | Imp Alle Kleuren 1.5mm | UL 746B | 140 | °C | |||
RTI | Str Alle kleuren 1,5 mm | UL 746B | 160 | °C | |||
RTI | Elec Alle kleuren 3.0mm | UL 746B | 160 | °C | |||
RTI | Imp Alle Kleuren 3.0mm | UL 746B | 140 | °C | |||
RTI | Str Alle kleuren 3,0 mm | UL 746B | 160 | °C | |||
Boogweerstand | ASTM D495 | 7 | BV | ||||
Vlamclassificatie | Alle kleuren 1,5 mm | UL94 | HB | ||||
Vlamclassificatie | Alle kleuren 3,0 mm | UL94 | HB | ||||
Mechanisch gedrag | Voorwaarde | Standaard | Waarde | Eenheid | |||
Verlenging | Pauze | ASTM D638 | 50~100 | % | |||
Buigsterkte | ASTM D790 | 106 | MPa | ||||
Buigmodulus | ASTM D790 | 2690 | MPa | ||||
Izod Notch-impact | ASTM D256 | 69 | J/m | ||||
Treksterkte Impactsterkte | ASTM D1822 | 420 | kJ/m² | ||||
Treksterkte | ASTM D638 | 70.3 | MPa | ||||
Trekmodulus | ASTM D638 | 2480 | MPa | ||||
Thermisch | Voorwaarde | Standaard | Waarde | Eenheid | |||
HDT | Niet-gegloeid 1,8 MPa | ASTM D648 | 174 | °C | |||
CLE | Stroom | ASTM D696 | 5.6E-5 | cm/cm/°C | |||
Fysieke eigendom | Voorwaarde | Standaard | Waarde | Eenheid | |||
Wateropname | 24 uur | ASTM D570 | 0.30 | % | |||
Krimp | Stroom | ASTM D955 | 0.70 | % | |||
Dikte | ASTM D792 | 1.24 | g/cm³ | ||||
Smeltindex | 343°C 2.16kg | ASTM D1238 | 6.5 | g/10min | |||
Elektrische eigenschappen | Voorwaarde | Standaard | Waarde | Eenheid | |||
Diëlektrische constante | 60Hz | ASTM D150 | 3.03 | ||||
Diëlektrische constante | 1KHz | ASTM D150 | 3.04 | ||||
Diëlektrische constante | 1 MHz | ASTM D150 | 3.02 | ||||
Volumeweerstand | ASTM D257 | 3E+16 | Ω.cm | ||||
Diëlektrische sterkte | ASTM D149 | 17 | kv/mm | ||||
Dissipatiefactor | 60Hz | ASTM D150 | 0.0007 | ||||
Dissipatiefactor | 1KHz | ASTM D150 | 0.001 | ||||
Dissipatiefactor | 1 MHz | ASTM D150 | 0.006 | ||||
Ontvlambaarheid | Voorwaarde | Standaard | Waarde | Eenheid | |||
GWFI | 0,8 mm | IEC 60695 | 850 | °C | |||
GWFI | 1.6~6.0mm | IEC 60695 | 960 | °C | |||
GWIT | 0,8 mm | IEC 60695 | 875 | °C | |||
GWIT | 1.6~6.0mm | IEC 60695 | 850 | °C | |||
Vlamclassificatie | Alle kleuren 1,5 mm | UL94 | HB | ||||
Vlamclassificatie | Alle kleuren 3,0 mm | UL94 | HB |
05 | Industry Trends
Metal and glass replacement: Lightweight and semi-transparent Udel® P-1700 NT 11 is gradually replacing traditional materials in visible and functional parts.
Medical and food safety upgrades: Increasing regulations drive demand for PSU materials that meet FDA and NSF standards.
Cost and environmental efficiency: Reusable and disinfectable, reducing maintenance and replacement costs.
06 | Similar Recommendations
Fabrikant | Productmodel | Soortelijk gewicht | Melt Flow Index | Treksterkte | Verlenging | Krimp | Trekmodulus | Warmteafbuigingstemperatuur | Notched Izod Impact | Buigmodulus | Coefficient of Linear Expansion | Buigsterkte |
Solvay | P-1700 WH 6417 | 1.24 g/cm³ | 6.5 g/10min | 70.3 MPa | 75% | 0.70% | 2480 MPa | 174 ℃ | 69 J/m | 2690 MPa | – | 106 MPa |
Solvay | P-1700 BK 937 | 1.24 g/cm³ | 6.5 g/10min | 70.3 MPa | 50~100 % | 0.70% | 2480 MPa | 174 ℃ | 7.04 kJ/m² | 2690 MPa | 5.6E-5 cm/cm/°C | 106 MPa |
Solvay | P-1700 NT-11 | 1.24 g/cm³ | 6.5 g/10min | 70.3 MPa | 50~100 % | 0.70% | 2480 MPa | 174 ℃ | 7.04 kJ/m² | 2690 MPa | 5.6E-5 cm/cm/°C | 106 MPa |
Solvay | P-1700 NT 06 | 1.24 g/cm³ | 6.5 g/10min | 70.3 MPa | 75% | 0.70% | 2480 MPa | 174 ℃ | 69 J/m | 2690 MPa | – | 106 MPa |
Solvay | P-1700 CL 2611 CMP | 1.24 g/cm³ | 6.5 g/10min | 70.3 MPa | 75% | 0.70% | 2480 MPa | 174 ℃ | 69 J/m | 2690 MPa | – | 106 MPa |
Solvay | P-1700 WH 7047 | 1.24 g/cm³ | 6.5 g/10min | 70.3 MPa | 50~100 % | 0.70% | 2480 MPa | 174 ℃ | 7.04 kJ/m² | 2690 MPa | 5.6E-5 cm/cm/°C | 106 MPa |
07 | FAQ
Q1: How many steam sterilization cycles can Udel® P-1700 NT 11 withstand?
A1: Over 1,000 cycles at 134℃ while maintaining performance.
Q2: How does it compare to polycarbonate (PC)?
A2: Offers higher heat and chemical resistance; transparency slightly lower.
Q3: Is it suitable for food contact?
A3: Yes, it meets regulatory requirements for food and drinking water applications.
Q4: Can it replace PPSU?
A4: In cost-sensitive projects, PSU can be used as an alternative, though PPSU performs better at very high temperatures.
08 | Why Choose Juyuan
Juyuan, with 24 years of experience in plastic raw materials trading, provides:
・Stable supply: Reliable access to Udel® P-1700 NT 11 through multiple channels.
・Material advice: Recommendations tailored to different industry and process needs.
・Market insights: Updates and cases from healthcare, electronics, and automotive sectors.
・Flexible services: Fast response and worldwide delivery support.
Partnering with Juyuan ensures not only a consistent supply of Udel® P-1700 NT 11 but also guidance throughout material selection and application.
