ABS PA-765 | Flame-Retardant ABS Resin Material for Automotive

ABS PA-765 is een halogeen vlamvertragend, spuitgiet-kwaliteit materiaal met hoge vloeibaarheid, sterkte en weersbestendigheid. Het wordt veel gebruikt in auto-onderdelen, elektronische en huishoudelijke apparatenbehuizingen, communicatieapparatuur en kantoorapparatuur. De toevoeging van smeermiddelen en losmiddelen verbetert de verwerkingsefficiëntie en productkwaliteit.

Neem contact met ons op

  • Productconstructie

What is ABS Resin Material?



In modern electronics, automotive and home appliance industries, the selection of materials not only affects product performance, but also directly influences safety and compliance. Chi Mei ABS PA-765 is an ABS resin material with flame-retardant properties. With its halogen flame-retardant system and excellent mechanical performance, it has become a key material choice for many industries.

ABS-PA-765



01 | Material properties



  ・Material marking: ABS-FR(17)

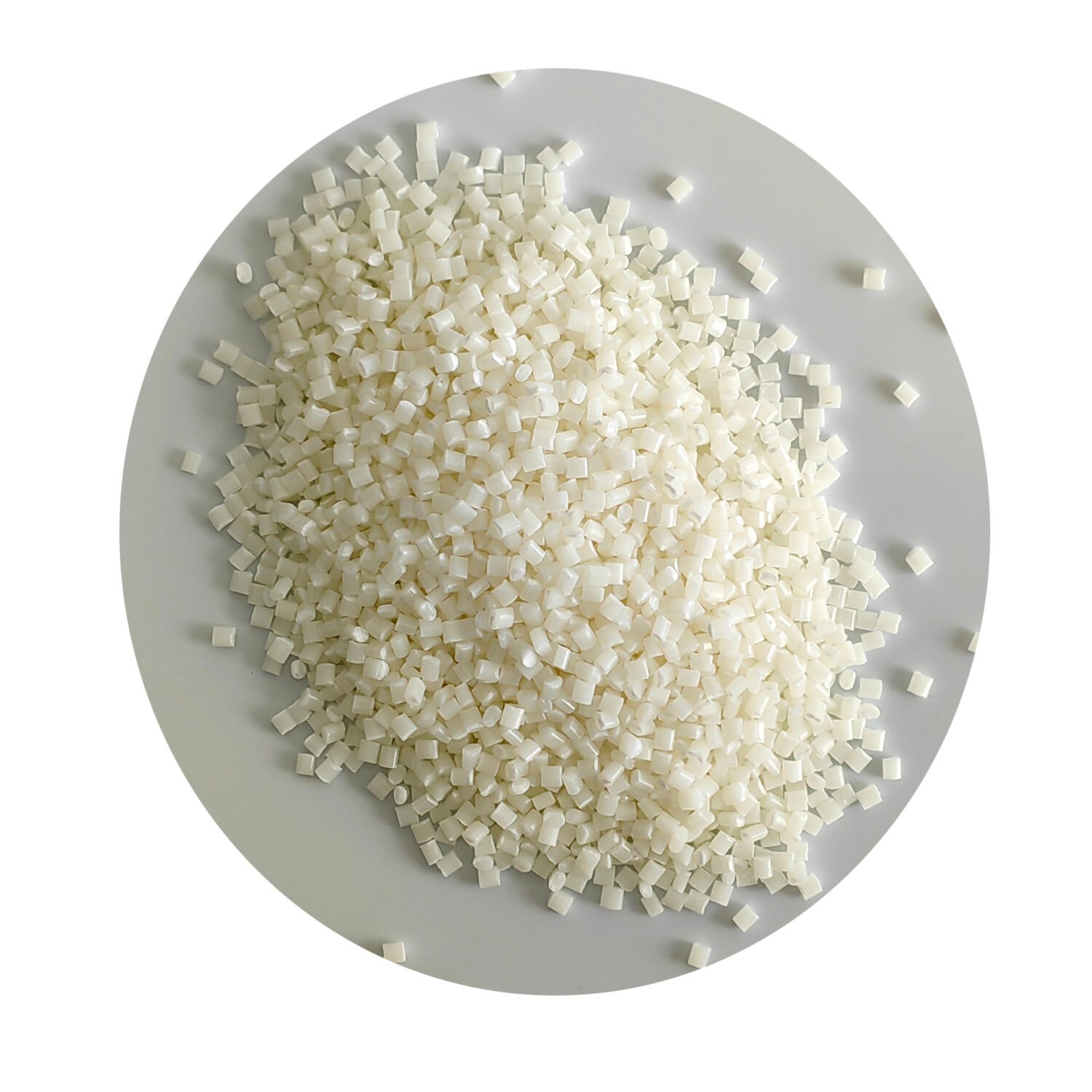

  ・Material shape: Granular, convenient for transportation and processing

  ・Processing method: Suitable for injection molding process

  ・Flame retardant grades: UL 94 V-1, V-0, 5VB, 5VA, which can meet the flame retardant requirements at different thicknesses

  ・Material properties: Halogen flame retardant type, injection molding grade

These characteristics enable PA-765 to strike a balance among flame retardancy, mechanical properties and processing adaptability.



02 | Material properties



Hoge vloeibaarheid: Ensure the filling efficiency of complex structures and thin-walled parts.

High strength: It performs stably in mechanical properties such as tensile and bending, meeting the requirements of durability.

Excellent weather resistance: Even after long-term exposure to the external environment, it can still maintain structural integrity and performance stability.



03 | Material usage



The comprehensive performance of Chi Mei PA-765 ABS resin material has enabled it to be widely applied in multiple industries:

  ・Automotive parts: Used for internal and external structural components of vehicles, balancing strength and safety.

  ・The enclosures of office equipment such as copiers and printers should meet the requirements of heat resistance and flame retardancy.

  ・Electronic and electrical appliance enclosures: Ensure that the equipment has reliable flame-retardant performance during operation.

  ・Household appliance shells: Applied in fields such as televisions and kitchen appliances.

  ・Communication equipment: Provides support for the enclosures of high-security standard telecommunications and network equipment.

  ・Motorcycle parts: Components that require toughness and weather resistance.



04 | Additive system



PA-765 ABS resin material contains halogen flame retardants, lubricants and mold release agents, which not only ensure flame retardant performance but also optimize the processing procedure:

  ・Halogen flame retardants: Endow materials with a higher flame retardancy grade.

  ・Lubricant: Enhance processing fluidity and improve the surface quality of the workpiece.

  ・Mold release agent: Shorten injection molding cycle and improve production efficiency.



05 | Innovation and industry competitive advantage



Compared with ordinary ABS resin material, PA-765 not only meets the mechanical performance requirements but also complies with high-grade flame retardant standards, thus having strong competitiveness in the global OEM supply chain. With the increasing demand for flame-retardant materials in the electronics, electrical appliances and automotive industries, the market prospects for this type of ABS resin material are broad.



06 | ABS Resin Material PA-765 Data Sheet



OntvlambaarheidVoorwaardeStandaardWaardeEenheid
VlamBeoordeling Alle kleuren 1,0 mmUL94V-1
VlamWaardering Alle kleuren 1,5 mmUL94V-0 5VB
VlamBeoordeling Alle kleuren 2,5 mmUL94V-0 5VA
VlamWaardering Alle kleuren 3,0 mmUL94V-0 5VA
HardheidVoorwaardeStandaardWaardeEenheid
RockwellHardheid R (schaal)ASTM D785100
Mechanisch gedragVoorwaardeStandaardWaardeEenheid
CharpyKerfslag 23°CISO17922kJ/m²
CharpyKerfimpact -30°CISO17910kJ/m²
Verlenging6 mm/minuutASTM D63815%
Verlenging50 mm/minuutISO52710%
BuigzaamSterkte 2,8 mm/minASTM D790620kg/cm²
BuigzaamSterkte 2,0 mm/minISO17855MPa
BuigzaamModulus 2,8 mm/minASTM D79021000kg/cm²
BuigzaamModulus 2,0 mm/minISO1781.8GPa
IzodKerf Impact 23°C 6,4mmASTM D25618kg-cm/cm
IzodKerf Impact 23°C 3,2mmASTM D25622kg-cm/cm
IzodKerfslag 23°CISO18021kJ/m²
IzodKerf Impact -30°CISO1809kJ/m²
TreksterkteSterkte opbrengst 6mm/minASTM D638390kg/cm²
TreksterkteSterkte Opbrengst 50 mm/minISO52738MPa
TreksterkteSterktebreuk 50mm/minISO52729MPa
Fysieke eigendomVoorwaardeStandaardWaardeEenheid
Dikte23°CASTM D7921.19g/cm³
Dikte23°CISO11831.19g/cm³
SmeltenIndex 200°C 5kgASTM D12385.0g/10min
SmeltenIndex 220°C 10kgISO113358cm³/10min
KrimpISO2940.3~0.6%
ThermischVoorwaardeStandaardWaardeEenheid
CLEISO113598.39E-5cm/cm/°C
HDTGegloeid 1,8 MPaASTM D64883°C
HDTNiet-gegloeid 1,8 MPaASTM D64873°C
HDTNiet-gegloeid 1,8 MPaISO7574°C
HDTGegloeid 1,8 MPaISO7583°C
VicatVerzachtingstemperatuur 50°C/uur 10NASTM D152590°C
VicatVerzachtingstemperatuur 50°C/uur 10NISO30691°C
VicatVerzachtingstemperatuur 50°C/uur 50NISO30678°C
ULVoorwaardeStandaardWaardeEenheid
BoogWeerstandASTM D4957BV
VergelijkendTrackingindexEN 601121BV
HAIALLE 1,0 mmUL746A0BV
HAIALLE 1,5 mmUL746A0BV
HAIALLE 2,5 mmUL746A0BV
HAIALLE 3,0 mmUL746A0BV
HVTRUL746A0BV
HWIALLE 1,0 mmUL746A4BV
HWIALLE 1,5 mmUL746A2BV
HWIALLE 2,5 mmUL746A2BV
HWIALLE 3,0 mmUL746A0BV
RTIElec ALLE 1.0mmUL 746B60°C
RTIElektrisch ALLE 1,5 mmUL 746B80°C
RTIElec ALLE 2,5mmUL 746B80°C
RTIElektrisch ALLE 3,0 mmUL 746B80°C
RTIImp ALLE 1,0 mmUL 746B60°C
RTIImp ALLE 1,5 mmUL 746B80°C
RTIImp ALLE 2,5 mmUL 746B80°C
RTIImp ALLE 3,0 mmUL 746B80°C
RTIStr ALLE 1.0mmUL 746B60°C
RTIStr ALLE 1,5 mmUL 746B80°C
RTIStr ALLE 2,5 mmUL 746B80°C
RTIStr ALLE 3,0 mmUL 746B80°C
ULVlambestendigheid ALLE 1,0 mmUL94V-1
ULVlamwaarde ALLES 1,5 mmUL94V-0 5VB
ULVlambestendigheid ALLE 2,5 mmUL94V-0 5VA
ULVlamclassificatie ALLES 3,0 mmUL94V-0 5VA
VolumeWeerstandASTM D2571E+15Ω.cm



07 | Customer feedback



Customers who use this material generally give feedback:

  ・It has a high molding efficiency and is suitable for large-scale production.

  ・It has excellent appearance quality and a smooth surface.

  ・It is highly durable and performs stably in the automotive and electronic fields.



08 | Frequently Asked Questions (FAQ)



Q1: Is PA-765 environmentally friendly?
A1: PA-765 adopts a halogen flame retardant system and remains the mainstream application solution at present, achieving a balance between safety and cost.

Q2: How does it perform in thin-walled parts?
A2: Thanks to its high fluidity, PA-765 exhibits excellent filling properties in complex molds and thin-walled structures.

Q3: Is it suitable for outdoor applications?
A3: Yes, its weather-resistant design ensures stable performance even in outdoor environments.



09 | Why choose Juyuan as the supplier



As a professional international trader of ABS resin materials, Juyuan possesses

  ・Multi-channel stable supply capacity: Ensure continuous supply and reduce procurement risks.

  ・Professional material selection support: Provide customers with material selection solutions based on performance and application.

  ・Industry experience accumulation: 24 years of experience in plastic raw material trading, with services covering the automotive, home appliance, electronics and other industries.

  ・Flexible trade services: Customized support can be provided according to customer needs.
